No Need Drill Hole Busbar Riveting Machine For Busbar Assembly

No Need Drill Hole Busbar Riveting Machine For Busbar Assembly

Features

1 The supercharger drives the split cylinder as the riveting power source, which has the characteristics of low noise, low energy consumption and no pollution.
2 The servo system controls the rivet clamp and the left and right movement, to realize the two sides are simultaneously riveted by the forward movement and the stop action of the roller.
3 The discharge line has a lateral removal function.

Function introduction

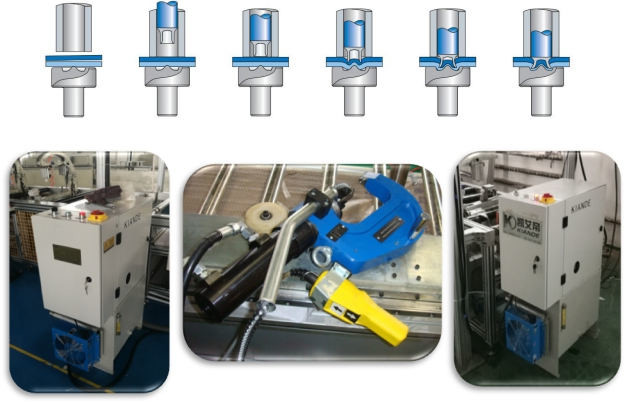

Self piercing riveting machine, also called riveting gun, is applied for busbar assembly. It can be customized according to different busbar housing. Before riveting, operator does not need to drill the hole. Machine can realize self-piercing riveting by its pressure and rivet structure. Working principal is as below.

Equipment data on self-piercing riveting machine

250MPa Busbar Riveting Machine

10000mm Busbar Riveting Machine

50L Busbar Riveting Machine

No Need Drill Hole Busbar Riveting Machine For Busbar Assembly Images
